Brother Scan N Cut Quick Tip – Blade Holder Check

February 11, 2017 — 45 Comments

Well it seems like you liked the last quick tip so I’ve got another one for you.

This time it relates to the blade holder.

Here are five blade holders collected up during a recent workshop.

Brother Scan N Cut Quick Tip

Hopefully you also notice how none of the blade adjustment number settings are in the same place.

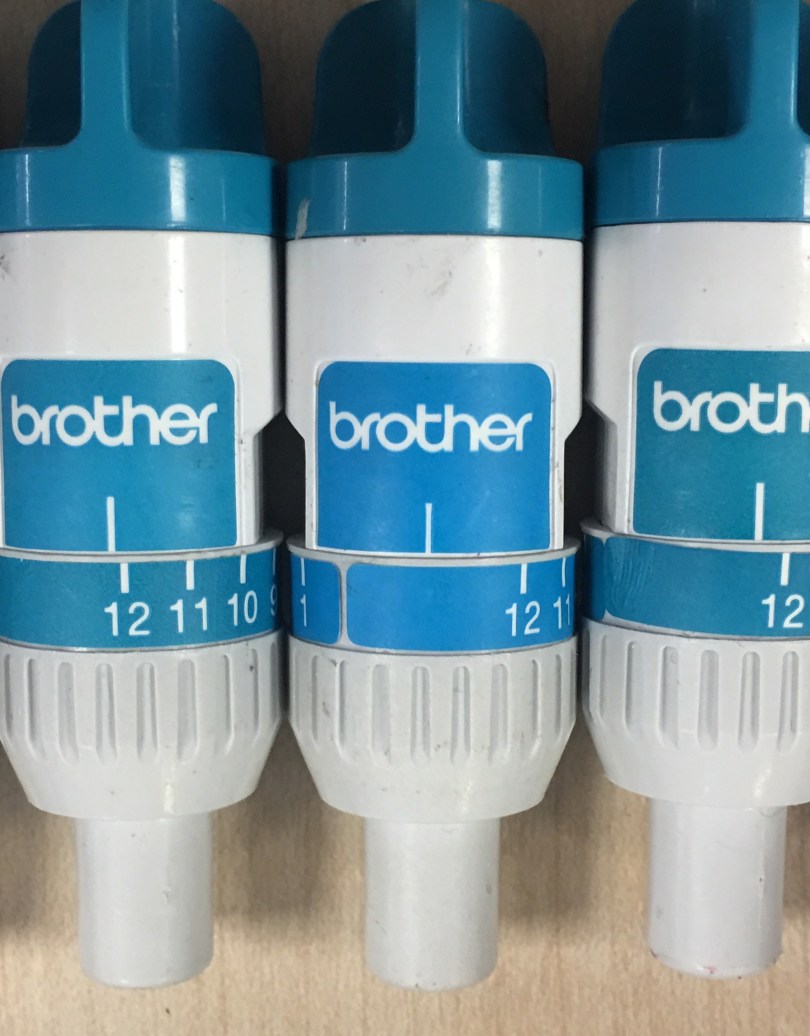

Heres a closer look.

img_5318



This will affect the results you get if you are following a settings guide.

Why?

Because when the blade carriage is put to its highest setting, which is 12, the mark above the twelve should line up with the mark just below the Brother logo.

You can clearly see on the middle one above that it is WAY off.

The simple fix?

Turn the blade holder until there is no gap between the top and bottom half and the carefully peel off the sticker with all of the numbers on, reposition it so that the mark above the 12 lines up with the line below the Brother logo and then stick it back down.

This could help alleviate some issues you may have found with blade depth settings however I would always still recommend doing a test cut to make sure that things are as they should be before committing time effort and resources to a complex twenty minute long cut.

Hope this helps!

J :)

45 responses to Brother Scan N Cut Quick Tip – Blade Holder Check

  1.

    Thank you! I was wondering why my mat was being cut when the blade was set at 1 . . . discovered my blade was as bad as the center one in your picture. What a difference this has made. Once again, thank you!

    Liked by 1 person

  2.

    Hi J

    I didn’t realise the blade holders were so out of sync, until I just took the one out of my machine, it was out by a good eighth of an inch and my deep cut blade holder was out by half an inch. Thank you so very much for this very useful information. Will definately be saving you as a friend.

    Many thanks
    Dawn :) x

    Like

  3.

    Hi J

    I didn’t realise the blade holders were so out of sync, until I just took the one out of my machine, it was out by a good eighth of an inch and my deep cut blade holder was out by half an inch. Thank you so very much for this very useful information. Will definately be saving you as a friend.

    Many thanks
    Dawn :) x

    Like

  4.

    I’m having issues with my machine, even using it on a 1, and a minus 5 pressure was too deep of a cut, going through sticky back vinyl, backing paper and mat! I am in contact with Brother who want pictures of everything, when I came across this article… when mine is screwed up to it’s highest point the Brother logo line, lines up before the 11 marker! I have sent Brother a picture of this also. Will see what they say, but if they are useless I will be using your advice to see if it helps

    Like

  5.
    Linda Coetzee July 20, 2017 at 1:29 pm

    Hi there
    I have done some embossing and once I have put my blade back after I cleaned it the blade is not cutting the way it should.

    Like

  6.
    Linda Willcocks April 12, 2017 at 11:54 am

    I had to get in touch with Mel Heaton as my scan and cut wasnt cutting even tho i waz using the right settings. I was getting quite upset wben as you say, all it took was to take the paper off and put it on properly as you said above.
    Thank you for all your tips. Most helpful.
    Linda

    Like

  7.

    You, sir, are a bloody legend!

    Like

  8.

    Thank you John I checked mine and it was way out. Now changed I wondered why I was having to use a higher number than was recommended. Great tip. June

    Like

  9.

    Hi John please can you help me my s&c c600 seems to have gone out of sync . If I press zero a 1appears and trying to scroll through the stored images takes some doing . How do I put it right

    Like

  10.

    Thank you for your tips John…I have been in contact with Mel (at C and C) pretty well constantly since a month after buying my machine in November 2014…it drives me mad! I’ve put a new blade in, sorted the blue strip, which was way out, as Mel suggested…it is slightly better but still ripping all my card, of various types including mirri card, which I use a lot. I wrote to Mel about two months ago to say I’d done the things she suggested but she hasn’t had time to reply yet, which is unusual as she’s normally quick at replying.
    It will cut straight lines but nicks everything at the bottom right side and as for anything intricate there is no chance, just rips or some times doesn’t even cut in one area and will in another. I’ve had to return to dies. I just don’t know what to do… Anni

    Like

    •

      Anni, if this is still in warranty I would contact the Brother support help desk for advice.

      Like

      •

        John, thank you for suggesting I contact Brother. I did contact about 6 months ago but never got a reply. I have been following the tips/advice, as I’ve mentioned to little effect.
        I contacted Brother last week, got a strange ‘frosty’ reception! I have to take/send the machine to Manchester, it will cost around £200 to mend. I know it is out of warranty but feel it is very unfair as I have been seeking/ taking advice etc. which is why the warranty ebbed away.

        I’m going to contact the CEO of Brother and make my feelings known. Other people need to be aware not to wait whilst one lot advice follows another until they are out of warranty!

        Regards Anni …. I have posted a congratulatory note on your well earned success.

        Like

      •

        Sorry to hear that your support experience hasn’t been the best however glad that you were able to get a response.
        Once out of warranty any product will attract costs to repair.
        Its not the same situation but did recently pay £65 to have a fault diagnosed on laptop to then be told it only needed a new power cable – £16. Gutting.

        Like

      •

        I understand about your Laptop, as annoying as it is. But had you been asking for advice for two years? As you can tell I’m not happy…I’m having a moan so no need to reply…Anni

        Liked by 1 person

  11.

    I’m happy to email it to you if you would like to see it. Don’t know if I would be comfortable putting it up here because of the disclaimers you get at the bottom of all correspondence with them?

    Like

  12.

    Thank you John, I am one clever cookie, because I nearly cut through my mat on the first run I played with the settings, no luck. I thought the sticker must be wrong so proceeded to peel it off and put on correctly. I am so glad that I have done something right. xx

    Like

  13.

    Thank you for another excellent tip.

    Like

  14.

    Thank you checked mine it was not lining up, tis’ now xx

    Like

  15.
    Margaret McDonald February 12, 2017 at 10:43 am

    Hello. I have found this post very interesting. I did exactly what you have described and was told by Brother that I had been given “bad advice” . They sent me a long detailed email as to exactly why that was the case. I was really upset with them – for another reason altogether about my machine and during the numerous emails back and forth with them this came up as yet another reason why my machine was not working as it should. They were going over all the different things that could have been caused my machine to not work and this was just one of them.

    Like

    •

      It seems to be odd that they would have alignment marks that don’t align. In addition I am often told that after doing this users get better cuts.
      I’m not arguing with brother or justifying their communications with you but just saying that I’ve seen positive results after this change and that others might like to try it.
      Sorry that you e not enjoyed your experience however I hope that you are now sorted.

      Like

      •

        Thanks John
        I had been asking for almost the entire time that I had my machine. Time and time again I wrote to Create and Craft and asked for help with this. In all of the 3 years I never got one single reply. Then a few months ago a demonstrator showed how to take the little blue strip off and restick lining it up and I thought Yay finally. Long story short – it didn’t work very well at all. I ended up so very frustrated I put the machine back in the box. I wrote to Brother – who after my really upset emails (I have been moms carer for 10 years and she passed away in December) I took it out and thought right get it out of the box!
        Nothing was going right at all with the machine. Due to my circumstances they contacted me and sorted it out. They were very specific about the little blue marker being moved! I got a two paragraph telling off! Anyway – I now have a brand new 900 and I am being so very very careful!!!

        Like

      •

        Well, I’d love to see that two paragraph telling off to see what advice they do have.

        Like

  16.

    Hi John

    Thanks for another great tip.

    I had a problem with the blade and holder supplied with my machine. The cut worked perfectly for designs requiring few cuts, but for more intricate cuts taking longer, by the end there was hardly a mark on the card. I discovered that no matter how hard I tried to fix the blade in the holder, or what depth I set the blade by the end of a complicated cut it had completely retracted into the holder.

    After consulting you and Mel I received a new holder and blade from Brother. Yippee no more problems. I still do not use this machine to its full potential, and like a previous comment l would dearly love you to come and live in my craft room.

    Keep up the good work. Thanks for all your help and wonderful designs

    Lois Stacey

    Sent from my iPad

    >

    Like

  17.
    Pauline Simmonds February 12, 2017 at 7:59 am

    John you are a treasure, thank you x

    Like

  18.

    I’ve been unable to use my scanncut,because I can’t get any standard blades,they are always out of stock at create & crafte,you would think that this would be always available.

    Like

  19.

    Thank you for this, John! I didn’t have any problems with the blades that came with my machine, but when I bought replacement blades, I went from cutting at a setting of 4 to cutting at a setting of 8😳 I checked my blade holder and sure enough, it was completely out of whack. I have followed your instructions and look forward to using these new blades. Thanks again!!!!

    Like

  20.

    Wow you are just brimming over with great tips. While I like Sylvia’s thoughts on a beginners guide I would like to go one better and suggest you move into my pad…..thus giving me unlimited access to your cracking hints and tips lol. Mind you I had better put this passed my hubby first! Karen x

    Like

  21.

    When/ if I do join planet Scan n Cut I shall be an expert thanks to you! 😆

    Like

  22.

    Another goody John. Have you considered writing ‘A beginners guide to Brother Scan ‘n Cut’ or problems solved, hints & tips…something along those lines? I would be the first to subscribe. You have such a mine of information.
    That is the big let down by Brother and one reason that it stayed in its box for so long. Brother do not give anywhere near enough information in the box to give you confidence to use it. It may be out there online but even as a beginner, or regular user, this is really offputting.
    I am sure that other readers would agree. Maybe another fundraising idea for you.
    Keep up the excellent work. We are all behind you with your challenge.

    Like

  23.

    hanks for the SnC tips, John – very useful. I haven’t had any issues with my blade/housing at all, but thought I would check. I generally don’t use the minus settings and cut copy paper on 1. my housing alignment looked almost as bad as the centre picture, so i’ve re-aligned it now. I guess I will now have to adjust all the settings I’ve used for the last 3 years? Many hanks

    Like

  24.

    John I have been aware of this. Pity it took me over 12 months to be aware and as a consequence got totally fed up with the machine that I bought at launch. One thing I notice from your picture is that the 2 bluest holders are way the most out of line. Mmm maybe too much of a coincidence and these came from a less than careful supplier!

    Like

  25.
    Elaine Chapman-Smith February 11, 2017 at 10:17 pm

    I have not used the number guide since the first time I cleaned the blade. I hold the unit up to the light & eyeball how far the blade extends from the holder. Works every time.

    Like

  26.

    Just received my special edition today still finding my way around the machine, thanks for the useful tips 😊

    Like

  27.
    Eileen McCullough February 11, 2017 at 10:08 pm

    Yes I discovered this before and it really does make a difference. This is a great tip as is the previous one about the needles am going to check mine once I have finished this post. I bought the alphabet usb and I have managed to delete the sides off the letter G, is there anyway to retrieve the file or do I have to buy a new Usb. I know this question is going of topic and I am sorry, but I really do need help with this. Thank you.

    Like

  28.

    Not had problems yet but will file your tips for future reference. Many thanks. Liz X

    Like

  29.

    Simple but very clever xxx
